Brand
Actualway®
Model
Série II
Reference
H22R3 – 3 MOTORS / H22R4 – 4 MOTORS

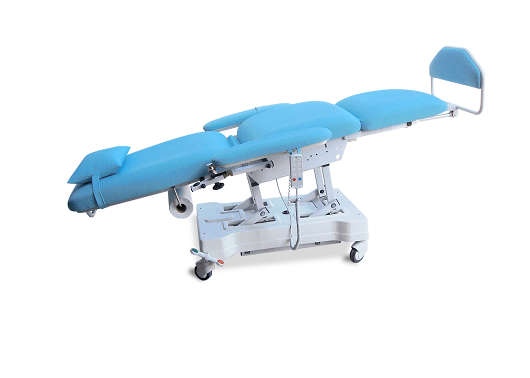

Reliability, stability and performance. This medical treatment chair has been developed to give comfort, security and wellness during long treatments such as dialysis, chemotherapy, oncology and blood transfusions

Neige (011 73 015)

Sable (011 73 008)

Poterie (011 73 034)

Brume (011 73 006)

Cerise (011 73 009)

Grenat (011 73 002)

Macadam (011 73 007)

Myosotis (011 73 033)

Charbon (011 73 001)

Saphir (011 73 005)

Olive (011 73 047)

Canard (011 73 046)

Pepper (011 73 044)

Brown (011 73 043)

Light Grey (011 73 045)

STANDARD DIMENSIONS

  • 205x54cm
  • Total width (including the arm rest): 88cm
  • Frame: 105x65x25cm
  • Height: 55-75cm

TECHNICAL SPECIFICATIONS

  • Power Supply: 230V /50-60Hz
  • Protection Category: IP44
  • Handset protection category: IP66

LOGISTIC DATA

  • Net weight: 85Kg
  • Palett: 0,80x1,20x1,60m
  • Gross weight: 120Kg

FEATURES AND ADVANTAGES

  • Easy to use and maintain
  • 3 or 4 motors
  • Adjustable head cushion
  • Handset including the Trendelenburg operation key
  • Arm rest vertical and horizontal position adjustment
  • Arm rest inclination adjustment
  • Built-in emergency/crash button and very easyto activate to get the Trendelenburg position -12º in 12 seconds
  • Granted Stability
  • Excellent delivery time and after sales service
  • Tested and approved load capacity:250Kg + the optional accessories
  • Central locking system on 10cm diametre castors
  • Rotating castors with medical properties(Polypropylene, thermoplastic rubber, grey non-marking,precision ball bearing, solid plug fitting)
  • High quality electrical components and accessories
  • Epoxy painting metal frame
  • Included battery
  • Special fireproof, waterproof and efficientagainst bacteria (MRSA) French coated fabric and easy to clean,class M2
  • Range of 15 available colours
